Examples of Cluster Restoration

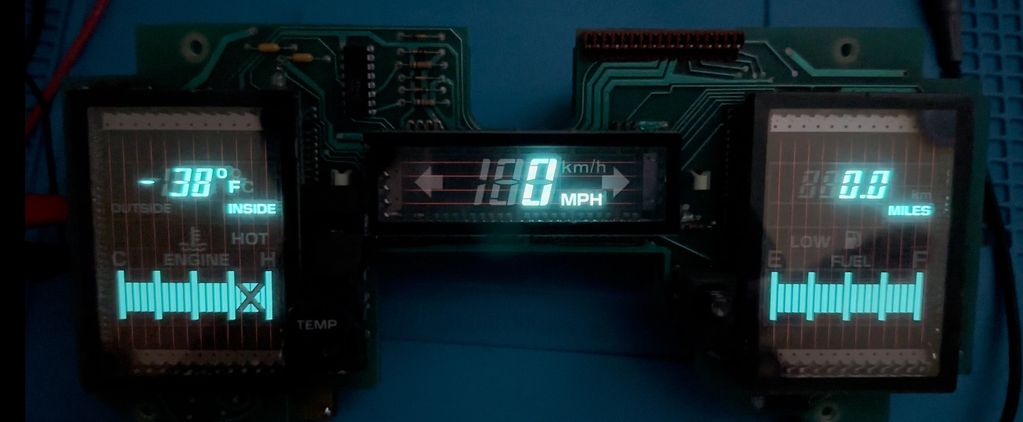

1989 Cluster with Dim or Missing Sections.

If your Digital Cluster has missing or incomplete Vacuum Florescent Display (VFD) sections, weak or dim areas. Most times this can be repaired.

Internally the cluster is divided into 2 sections, or circuit boards. The Display Board is what you see, with a processor board behind it. Failures on the display board are the most common problem seen on the Digi

1989 Cluster Fully Restored

Problems on the cluster are repaired; damaged traces are fixed, caps in the external power pack, and both circuit boards are all proactively replaced.

The cluster is cleaned and scratches on the face are removed if not too deep.

Deep scratches can be removed, but most times doing so you will remove the white trapezoid around the speedometer. NOS or OEM lenses are no lo

1990 to 1992 Analog Cluster fully Restored.

Most problems seen on this style cluster are either with missing VFD information display readouts, missing or dim backlighting. Severe problems exhibit symptoms of no power to the cluster. All gauges except the tach stop working. Climate controls show outside temp as -40.

Proactive service can prevent these problems. Some that have already experience c

1984 / 1985 Caliente Digital Restoration


This is an example of a restoration for a 1984/85 Toronado Caliente Digital Cluster. Most often these clusters just stay dark, stop working and  will not power on.

The cluster is inspected, repaired, and all passive components are upgraded and replaced with all new modern components.

All left hand side indicator lamps are tested and replaced if found to b
